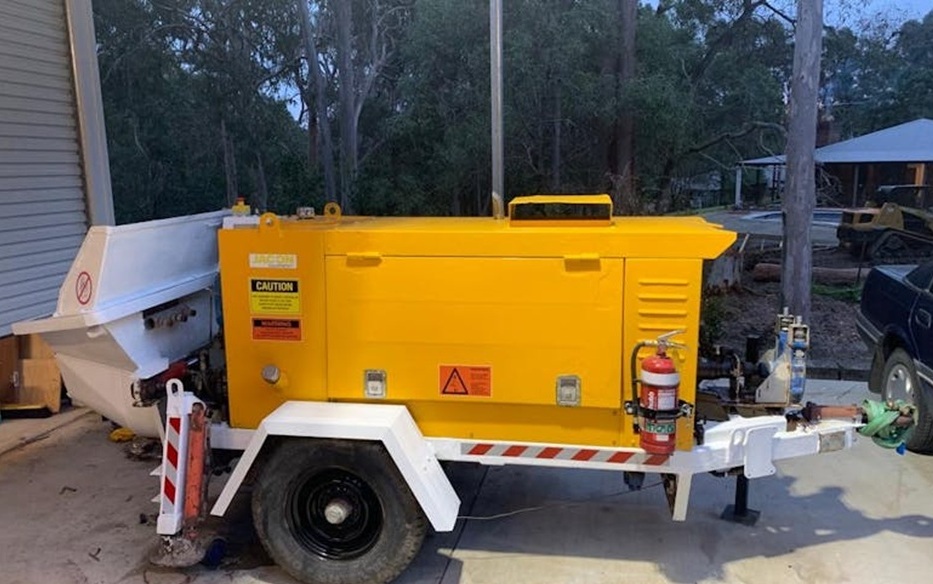

Jacon S20
The hire concrete pump can pump up to 20 cubic metres per hour and is fitted with a 4″ discharge.
The JACON S20 concrete/grout trailer pump draws on nearly 40 years of experience in the production of concrete pumps, line pumps, and shotcreting equipment. You’ll be highly impressed by the quality, durability, reliability, cost-effectiveness, and simplicity of operation offered by the JACON hire concrete pump.
The S20 is supplied with a 4″ 90-degree reducing bend and washout equipment. Hoses and clamps are available on request.
| S20 Diesel Concrete Pump | Dual Cylinder Swing Tube Pump |
|---|---|
| Engine | 3 Cylinder Deutz |
| Power | 34 kW @ 2800 rpm |
| Hydraulic Pressure (Max) | 250 bar |
| Hydraulic Oil Capacity | 100 litres |
| S20 Diesel Concrete Pump | Dual Cylinder Swing Tube Pump |
|---|---|
| Rated Output | 20 m³/hr |
| Pumping Cylinder Stroke | 125 x 915 |
| Number of Strokes per Minute | 30 |
| Vertical Reach | 80 m |
| Horizontal Reach | 250 m |
| Line Pressure | 70 bar |
| Maximum Aggregate Size | 20 mm |

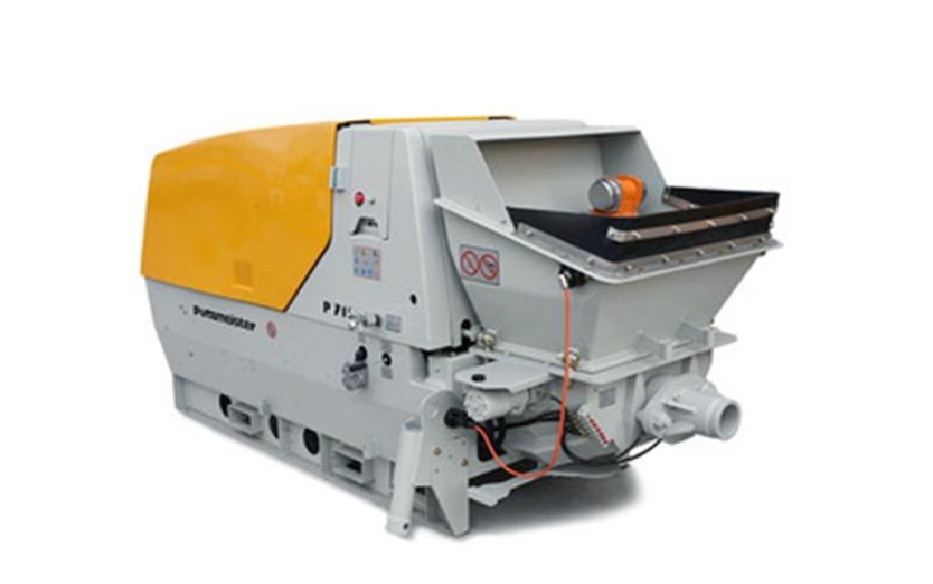

Putzmeister 715 SE
Reliable, Powerful and Mobile Stationary Concrete Pump for a wide range of Applications
The Putzmeister stationary concrete pump P 715 is small, light and features a powerful dual-piston pump. It is used for manual, not synchronized additive adding shotcrete and fine concrete up to a grain size of 16 mm. With a delivery pressure of up to 68 bar and an output of 20 m³/h, it is a real power pump, despite its small dimensions and low weight.
| Feed Hopper | 250 L |
| Delivery Pressure | 68 bar |
| Horizontal Reach (gross) | 300 m |
| Vertical Reach | 100 m |
| Pump | Hydraulic, 2 cylinder |
| Strokes (piston side) | 27 |
| Delivery Cylinder Diameter – Stroke Length | 150 / 700 mm |
| Maximum Aggregate Size | 16 mm |
| Output | 4 – 18.2 m³/hr |
| Engine | Electric |
| Engine Power | 30 kW |
| Operating Voltage – Frequency | 400 / 50 V/Hz |
| Weight | 1650 kg |
| Length × Width × Height | 2950 × 1400 × 1400 mm |
| Filling Height | 973 mm |
| Chassis | Stationary |

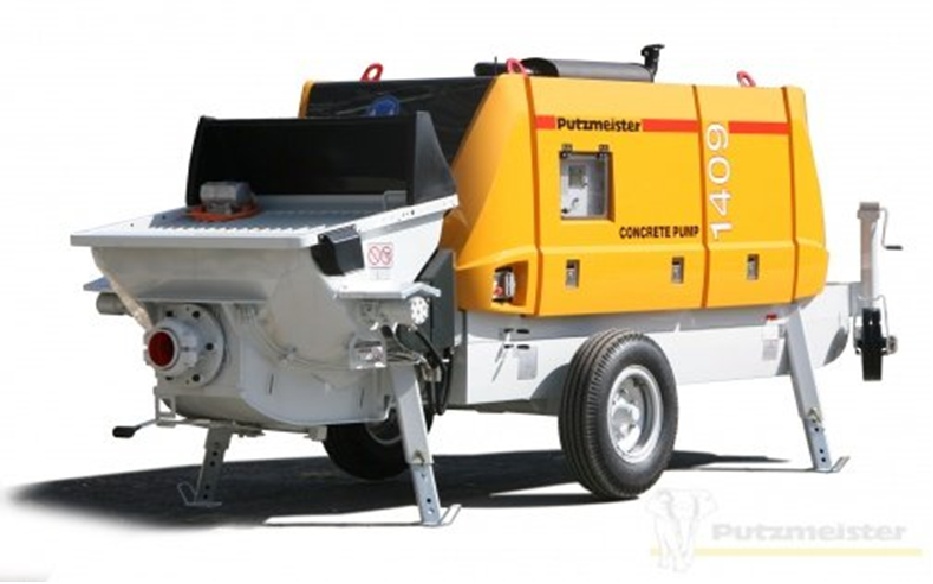

Putzmeister 1409D
The stationary all-round concrete pump with proven EU Stage IIIA diesel engine
The Putzmeister BSA 1409 D is an all-round, high strength stationary concrete pump, equipped with a powerful 140 kW 6-cylinder Deutz diesel engine (EU-Stage IIIA). With a maximum capacity of up to 97 cubic meters per hour, this concrete pump is ideal for medium distance pumping and in civil construction applications.
| Output (Rod Side) | 97 m³/hr |
| Output (Piston Side) | 67 m³/hr |
| Delivery Pressure (Rod Side) | 71 bar |
| Delivery Pressure (Piston Side) | 106 bar |
| Strokes (Rod Side) | 37 |
| Strokes (Piston Side) | 25 |
| Engine Power | 140 kW |
| Delivery Cylinder Diameter – Stroke Length | 200 / 1400 mm |
| Pressure Connection | 125 mm |
| Length × Width × Height | 5750 × 2021 × 2380 mm |
| Weight | 4500 kg |

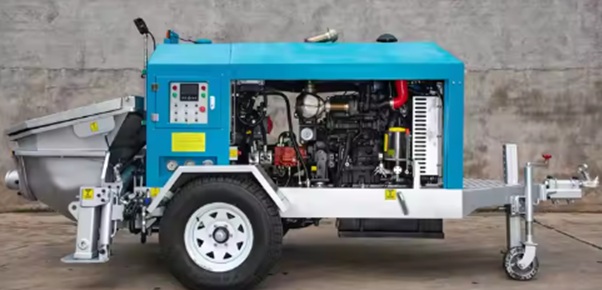

Achieve S45
| Product Model | ACHIEVE AP400‑1060B Concrete Pump |
| Engine Brand | China‑Made DF CUMMINS Diesel Engine (44BTA3.9‑C80‑II) Emission II |
| Power | 60 kW |
| Theoretical Maximum Delivery Capacity | 40 m³/h |
| Delivery Cylinder Specification Diameter | 200 mm |
| Outlet Diameter | 125 mm |
| Work Schedule | 800 mm |
| Theoretical Vertical Pumping Distance | 100 m (Fine Stone ≤ 25 mm) 50 m (Crushed Stone ≤ 40 mm) |
| Theoretical Horizontal Pumping Distance | 300 m |
| Theoretical Concrete Outlet Pressure | 80 bar |
| Pumping Frequency | 26 times/min |
| Hydraulic System | Kawasaki + Rexroth Dual Circuit Control |
| Hydraulic Hose | Eaton |
| Hopper Capacity | 0.3 m³ / 200 Hopper |
